Description

Overview

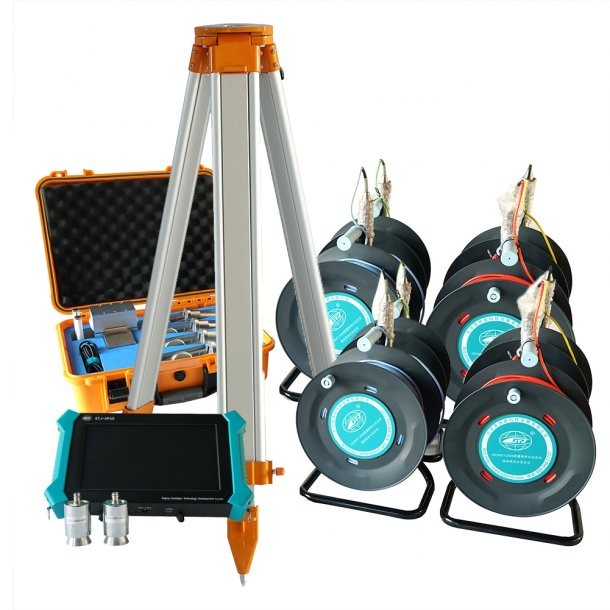

U9XX series crosshole sonic analyzers are top-of-the-line instruments designed for
comprehensive non-destructive testing (NDT) of non-metallic materials, including
concrete and rock mass. The series is developed by IWINTESTING EQUIPMENT
and supplied by Kreator Lab BG as an official representative.

The devices are extremely easy to understand and operate, yet they provide top-quality data
on integrity, strength and other valuable mechanical properties of non-metallic materials. They are ideal
for defect detection and defect shape measurements in a wide range of
civil engineering and geotechnical applications.

U9XX series analyzers are perfectly suited for:

• pile integrity testing
• structural concrete compressive strength assessment
• diaphragm wall integrity testing
• geological exploration (e.g. rock integrity and weathering evaluation)

The U9XX series utilizes ultrasonic wave propagation to collect the most useful information
about the object under investigation, making it a powerful tool for non-destructive evaluation of
concrete structures and rock formations.

Measurement principle

The U9XX analyzers are based on the ultrasonic wave spreading properties in non-metallic
materials. By transmitting and receiving ultrasonic pulses through the material, the system measures:

• acoustic travel time and its accuracy,
• amplitude and waveform of received signals,
• changes in signal characteristics caused by defects, cracks, inclusions and other discontinuities.

These measurements allow the user to assess material integrity, detect defects and evaluate strength-related
properties without damaging the structure.

Key features & benefits

• Comprehensive NDT for non-metallic materials
  Designed for integrity, strength and defect assessment in concrete, rock mass and other non-metallic materials.
• Wide application range
  Suitable for pile integrity testing, structural concrete strength evaluation, diaphragm wall integrity testing
  and geological exploration (rock integrity, weathering evaluation, etc.).
• Wireless data transfer & cloud storage
  Integrated wireless data transfer function with optional wireless cloud transport and
  large internal storage.
• Five integrated test functions
  Pile integrity measurements, concrete strength measurement, defect detection, sounding and defect shape
  measurements in one system.
• High-brightness TFT color LCD screen
  10.1-inch high-brightness TFT color LCD capacitive screen with intuitive touch-screen operation.
• Large integrated memory
  Built-in electronic hard disk (> 8 GB) plus support for large-capacity U disk for extended data storage.
• Efficient data acquisition
  Double receiving, automatic collection and automatic recording of height and sound waveform to significantly
  improve work efficiency.
• Waveform playback & editing
  Original measuring point waveforms can be played back, overwritten and deleted, allowing detailed review
  and data management.
• Ultrasonic rebound method compatibility
  Can be connected with a digital rebound hammer probe to implement an ultrasonic rebound comprehensive method.
• Powerful PC software
  Supplied with powerful analytical software for PC for advanced data processing, reporting and long-term storage.

Typical applications

• Non-destructive integrity testing of concrete piles
• Assessment of structural concrete compressive strength
• Integrity testing of diaphragm walls and underground structures
• Geological exploration and rock mass integrity evaluation
• Detection and characterization of internal defects in non-metallic materials

Model range and acquisition modes

The U9XX series includes three main models with different channel configurations and acquisition modes:

Parameter	IWIN-U930	IWIN-U950	IWIN-U960
Acquisition mode	Single-channel manual point-by-point acquisition	Synchronized continuous rapid acquisition	Synchronized continuous rapid acquisition
Number of disposable profiles	2	3	6
Channel configuration	1 transmit + 1 receive channel	3-channel spontaneous receiving	4-channel spontaneous receiving

Technical specifications (common)

Control unit	Built-in A8 industrial control motherboard
Display	10.1-inch high-brightness TFT color LCD capacitive screen
Operational mode	Touch screen operation
Storage mode	Built-in electronic hard disk (> 8 GB) + large-capacity U disk
Data transmission	Wireless cloud transport (optional)
Ultrasonic performance
Trigger mode	Signal triggering
Sampling period (μs)	0.05–409.6, multi-stage options
Acoustic time accuracy (μs)	0.05
Acoustic time range (μs)	±1677700
Width measurement function	Measuring range 0–10 mm; measuring accuracy 0.01 mm
Dynamic range (dB)	146
Bandwidth (kHz)	1–500
Receiving sensitivity (μV)	≤ 10
Gain accuracy (dB)	0.5
Emission voltage (V)	65, 250, 500, 1000 (four gears adjustable)
Interfaces, power & environment
Communication interfaces	USB, Bluetooth, Wi-Fi
Working hours	≥ 8 hours
Power supply	Built-in lithium batteries with 220V–16V AC/DC power supply
Working environment	Temperature: -10 °C to +40 °C; humidity (RH) < 90%
Host size (mm)	300 × 200 × 55

Get more information

If you need help selecting the optimal model from the U9XX series or want to check whether these
crosshole sonic analyzers are suitable for your specific non-destructive testing tasks, please contact
Kreator Lab BG for an application review, demo measurements and a tailored quotation.
